VALVE FOR AGRICULTURE

BD

Bidirectional flow control for lifting equipment

Flow control b-directional

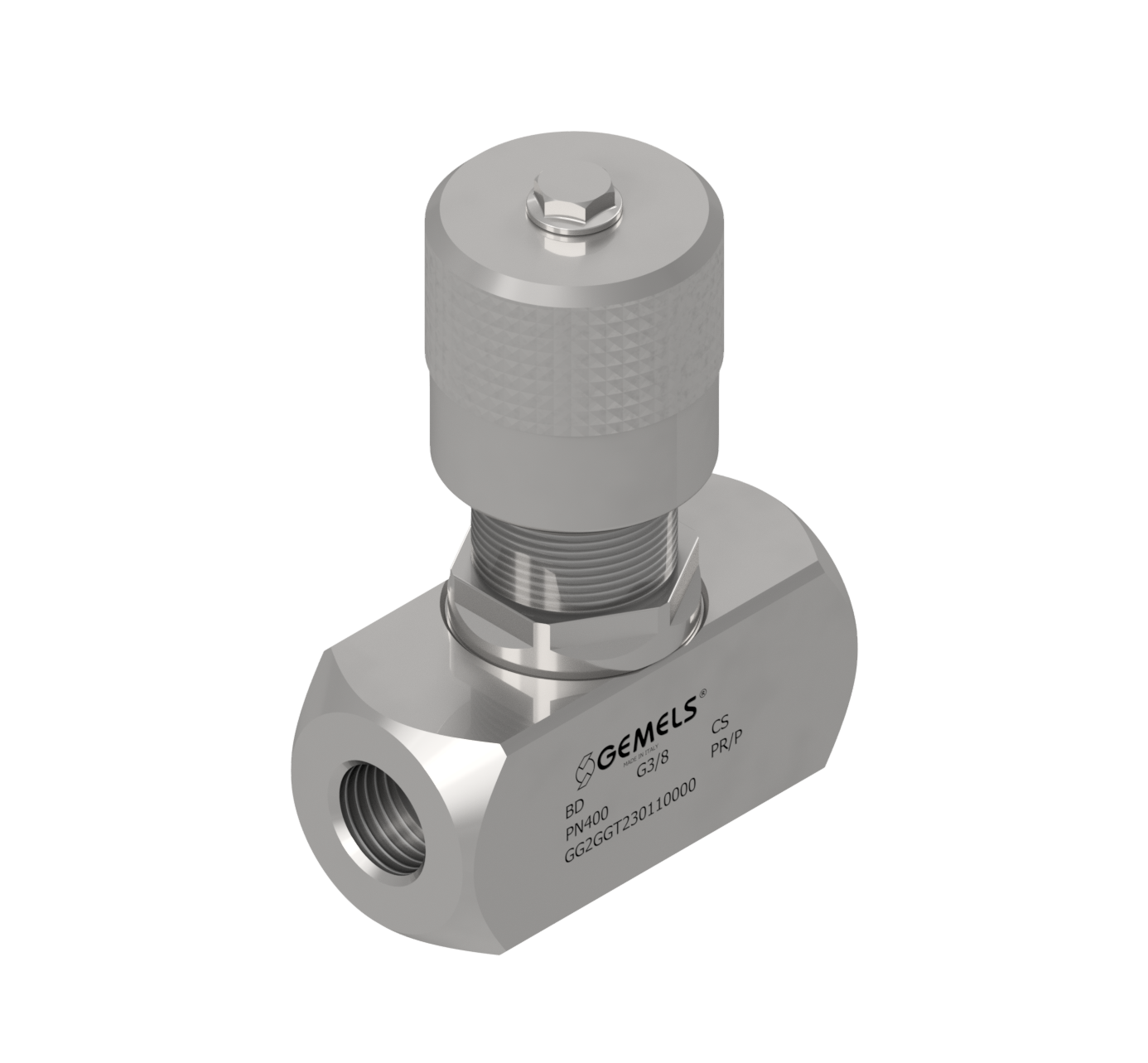

The BD series valves are designed for hydraulic applications where bidirectional flow regulation is required to control actuator speed. They are particularly suitable for hydraulic systems and industrial machinery where simple and stable flow adjustment is needed.

As a bidirectional flow control valve, the configuration allows precise flow regulation regardless of flow direction, ensuring consistent speed control within hydraulic circuits. This improves system stability and operational consistency.

Made of high-strength steel and designed for hydraulic applications, BD valves ensure long-term reliability even under demanding operating conditions. Their compact structure allows easy integration into existing hydraulic systems while minimizing installation space.

Datasheet

Carbon Steel
Type BIDIRECTIONAL FLOW CONTROL
Dimensions from DN6 to DN25
Technical details BSP-NPT
Pressure up to PN400
Temperature range from -20°C up to +100°C
pdf ( 2.03 MB )
BD disegno tecnico
POS Description Q.ty Carbon Steel Stainless Steel
1 Body 1 1,0737
2 Caps 2 PVC
3 Stem 1 1,05
4 Stem o-ring 1 NBR
5 Stem ring 1 PTFE
6 Handle 1 ALLUMINIUM
7 Screw 1 DIN 7991 8.8
8 Screw 1 DIN 7991 8.8
PANEL MOUNTING KIT
PANEL MOUNTING KIT
DIN/ISO 228 BSP
Item code Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GG2GGT130110000 BD G 1/4 6 40 25 12.5 54 25 30 76 G 1/4 M20X1 0.3
GG2GGT230110000 BD G 3/8 10 40 25 12.5 54 25 30 76 G 3/8 M20X1 0.31
GG2GGT330110000 BD G 1/2 13 40 30 15 58 30 30 81 G 1/2 M20X1 0.5
GG2GGT430110000 BD G 3/4 20 40 40 20 81 40 38 110 G 3/4 M35X1.5 1.1
GG2GGT530110000 BD G 1 25 40 45 22.5 102 45 38 114 G 1 M35X1.5 1.5
GG2GGT630110000 BD G 1 1/4 32 35 55 27.5 102 55 50 137 G 1 1/4 M45X1.5 2.4
GG2GGT730110000 BD G 1 1/2 40 35 65 32.5 102 65 50 147 G 1 1/2 M45X1.5 3
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT
Item code Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm Ød1 mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm HEX mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GG2NNT130110000 BD N 1/4 6 40 25 12.5 54 25 30 76 N 1/4 M20X1 0.33
GG2NNT230110000 BD N 3/8 10 40 25 12.5 54 25 30 76 N 3/8 M20X1 0.31
GG2NNT330110000 BD N 1/2 13 40 30 15 64 30 30 81 N 1/2 M20X1 0.5
GG2NNT430110000 BD N 3/4 20 40 40 20 81 40 38 110 N 3/4 M35X1.5 1.1
GG2NNT530110000 BD N 1 25 40 45 22.5 102 45 38 114 N 1 M35X1.5 1.5
GG2NNT630110000 BD N 1 1/4 32 35 55 27.5 102 55 50 137 N 1 1/4 M45X1.5 2.4
GG2NNT730110000 BD N 1 1/2 40 35 65 32.5 102 65 50 147 N 1 1/2 M45X1.5 3
disegno tecnico Gemels

BD

DATASHEET
pdf ( 2.03 MB )

BD

DRAWING
Download some files is restricted to registered users. If you are not registered, proceed now. Click here to register
zip ( 307.98 KB )
BD G 1/4 stp ( 184.83 KB )
BD G 3/8 1 stp ( 193.14 KB )
BD G 1/2 stp ( 176.37 KB )
BD G 3/4 stp ( 216.89 KB )
BD G 1 stp ( 210.02 KB )
BD N 1/4 stp ( 184.83 KB )
BD N 3/8 stp ( 193.14 KB )
BD N 1/2 stp ( 176.37 KB )
BD N 3/4 stp ( 216.89 KB )
BD N 1 stp ( 210.02 KB )
